Xiaomi/XIAOYI Smart Camera is Linux Camera Box.

正式名称がXiaomi/XIAOYI Smart Cameraで良いのか少し不安だが。
Xiaomi/XIAOYI Smart Cameraは、Linux Camera Boxとしてオモチャとしてなりうるのかを見てみたいと思います。
なぜオモチャとして見ているかは、日本国内で普通に使うには技適の問題と、繋ぎ方が解りにくかったから。。。
中国語が解れば簡単に使えるのかもしれないが。。。なかなかAndroidアプリが見つからないし。。。
ちなみに入手したのは、Nightバージョンになります。


相変わらずのシンプルな箱。
Xiaomiはみんなこんな感じ。

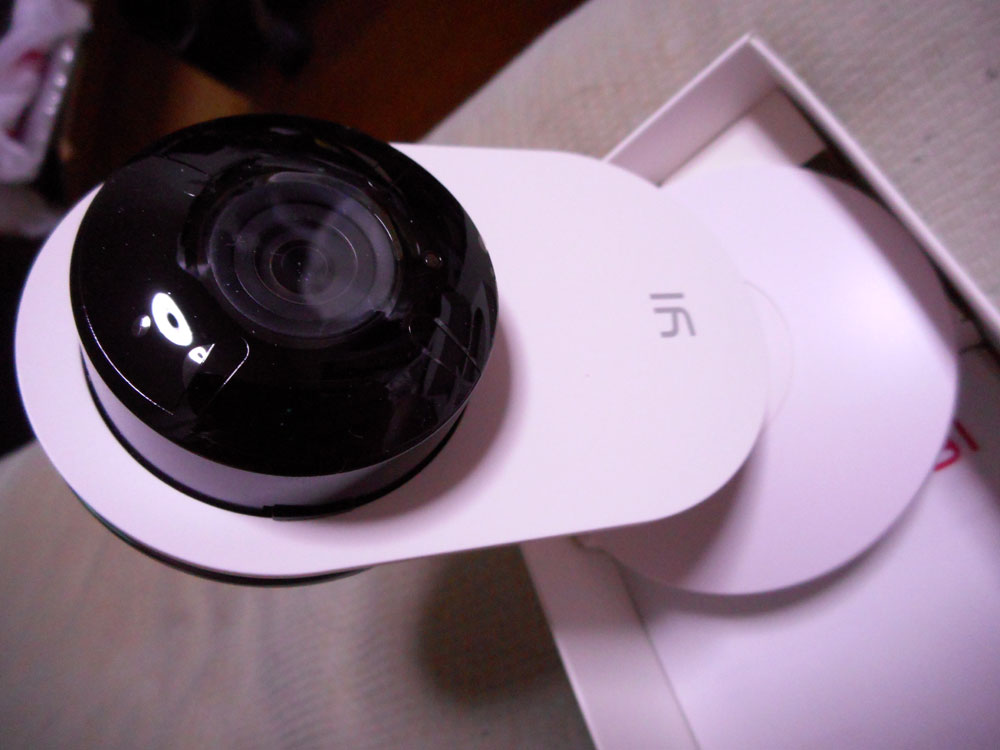

板にカメラ本体を刺すという形のパッケージ。
軽くて扱いやすそう。


USB電源アダプタ。
日本でも刺さるタイプのプラグではあるが、使うかと云われると使わない。
通常のmicroUSBなので、日本で入手できるアダプタを使う方が安心と思われる。


板にカメラモジュールを付けて固定する形、台座も軽いので立つのか不安があったが問題はなさそう。
ネジ等で壁に付けるタイプではなく、底面が接着テープ状態になっているので、壁に付ける場合は本当に貼る形。(これは少しやりたくない感)
あと、1回剥がしたらどうするんだ?位置は一回で決めろと。。。


microUSBケーブルと、USB電源アダプタ、1枚ぺらの説明書が付いています。
中国語はわからんので、説明書は読みません(読めません)。。。


カメラ本体は、台座に填め込んでいるだけなので簡単に外せます。
爪を少し押しながらで簡単に抜けます。



では開封記と行きましょう。
プラスネジ4か所で簡単に開きます。
日本と違い、簡単に開けれない様にする必要がないのでしょう。
予想していなかった基板に実装されずに、配置されているだけの部品。
ケース側についてます。


搭載されているSoCはHi3518。
HD IP Camera用のARMv5になります。
ぐぐるとデータシートも見つかるので、情報には困らなさそうではあります。
パターンが並んでいるのはJTAGと思われるが、各パターンを調べていくのは面倒なので、どこかに情報がないか探してみる事にしよう。
写真右上の3パターン、コネクタにそのまま対応している訳だが、この箇所はUARTなので、ここさえ使えればファームの書換え自体は可能である。


最近増えてきた様にも思える、モジュール基板を張り付けるタイプ。
センサーはど真ん中。
傷をつけない様に注意してください。
あと、写真下側にSPI Flash。(8ピンタイプなので、扱いやすくて助かります。)
ちなみに使われているのは馴染みのないGIGADEVICEのGD25Q128です。


レンズ側とは、またネジで固定しています。


ガワは柔らかい素材です。
柔らかいというか薄いというか、ペコペコです。


取り外すとこの様な形になります。


レンズ廻りには赤外線が並んでいます。


基板上にネジが4か所。
2個がレンズ固定用。2個がケースに基板固定用です。


シリアルのボーレートは、115,200です。
起動するのはLinux。
toolchainはgithubに存在していそうなので、遊べそうな予感がします。
もちろん日本で無線を飛ばす訳にはいかないので、無線は技適取得済みモジュールに差し替え?
なんていうハックもありかもしれませんね。
U-Boot 2010.06 (Aug 11 2014 - 15:41:13)

Serial Number: hi3518c

Check spi flash controller v350... Found
Spi(cs1) ID: 0xC8 0x40 0x18 0xC8 0x40 0x18
Spi(cs1): Block:64KB Chip:16MB Name:"GD25Q128"
MMC:   MMC FLASH INIT: No card on slot!
*** using default environment for 16MB flash
In:    serial
Out:   serial
Err:   serial

 do_auto_sd_update: detect flash size: 0x1000000, gsdexist=0

 do_auto_update: detect flash size: 0x1000000
USB:   scanning bus for devices... 2 USB Device(s) found
0 Storage Device(s) found
gpio7_7 =80
gpio2_5 =20
Press Ctrl+C to stop autoboot
16384 KiB hi_sfc at 0:0 is now current device

## Booting kernel from Legacy Image at 82000000 ...
   Image Name:   Linux-3.0.8-7518-hi3518-kernel
   Image Type:   ARM Linux Kernel Image (uncompressed)
   Data Size:    2894932 Bytes = 2.8 MiB
   Load Address: 80008000
   Entry Point:  80008000
   Loading Kernel Image ... OK
OK

Starting kernel ...

Uncompressing Linux... done, booting the kernel.
Linux version 3.0.8 (rock07@Server) (gcc version 4.4.1 (Hisilicon_v100(gcc4.4-290+uclibc_0.9.32.1+eabi+linuxpthread)) ) #1 Wed Apr 30 16:56:49 CST 2014
CPU: ARM926EJ-S [41069265] revision 5 (ARMv5TEJ), cr=00053177
CPU: VIVT data cache, VIVT instruction cache
Machine: hi3518
Memory policy: ECC disabled, Data cache writeback
AXI bus clock 200000000.
Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 10160
Kernel command line: mem=40M console=ttyAMA0,115200 root=/dev/mtdblock4 rootfstype=jffs2 mtdparts=hi_sfc:256k(boot)ro,128k(env),128k(conf),3072k(os),3584k(rootfs),9088k(home),128k(vd)
PID hash table entries: 256 (order: -2, 1024 bytes)
Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
Memory: 40MB = 40MB total
Memory: 35080k/35080k available, 5880k reserved, 0K highmem
Virtual kernel memory layout:
    vector  : 0xffff0000 - 0xffff1000   (   4 kB)
    fixmap  : 0xfff00000 - 0xfffe0000   ( 896 kB)
    DMA     : 0xffc00000 - 0xffe00000   (   2 MB)
    vmalloc : 0xc3000000 - 0xfe000000   ( 944 MB)
    lowmem  : 0xc0000000 - 0xc2800000   (  40 MB)
    modules : 0xbf000000 - 0xc0000000   (  16 MB)
      .init : 0xc0008000 - 0xc0029000   ( 132 kB)
      .text : 0xc0029000 - 0xc0515000   (5040 kB)
      .data : 0xc0516000 - 0xc053a0e0   ( 145 kB)
       .bss : 0xc053a104 - 0xc0557380   ( 117 kB)
SLUB: Genslabs=13, HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
NR_IRQS:32 nr_irqs:32 32
sched_clock: 32 bits at 100MHz, resolution 10ns, wraps every 42949ms
Console: colour dummy device 80x30
Calibrating delay loop... 218.72 BogoMIPS (lpj=1093632)
pid_max: default: 32768 minimum: 301
Mount-cache hash table entries: 512
CPU: Testing write buffer coherency: ok
NET: Registered protocol family 16
Serial: AMBA PL011 UART driver
uart:0: ttyAMA0 at MMIO 0x20080000 (irq = 5) is a PL011 rev2
console [ttyAMA0] enabled
uart:1: ttyAMA1 at MMIO 0x20090000 (irq = 5) is a PL011 rev2
bio: create slab  at 0
SCSI subsystem initialized
usbcore: registered new interface driver usbfs
usbcore: registered new interface driver hub
usbcore: registered new device driver usb
cfg80211: Calling CRDA to update world regulatory domain
Switching to clocksource timer1
NET: Registered protocol family 2
IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
TCP established hash table entries: 2048 (order: 2, 16384 bytes)
TCP bind hash table entries: 2048 (order: 1, 8192 bytes)
TCP: Hash tables configured (established 2048 bind 2048)
TCP reno registered
UDP hash table entries: 256 (order: 0, 4096 bytes)
UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
NET: Registered protocol family 1
RPC: Registered named UNIX socket transport module.
RPC: Registered udp transport module.
RPC: Registered tcp transport module.
RPC: Registered tcp NFSv4.1 backchannel transport module.
NetWinder Floating Point Emulator V0.97 (double precision)
VFS: Disk quotas dquot_6.5.2
Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)
JFFS2 version 2.2. (NAND) c 2001-2006 Red Hat, Inc.
fuse init (API version 7.16)
msgmni has been set to 68
Block layer SCSI generic (bsg) driver version 0.4 loaded (major 253)
io scheduler noop registered
io scheduler deadline registered (default)
io scheduler cfq registered
brd: module loaded
loop: module loaded
Spi id table Version 1.22
Spi(cs1) ID: 0xC8 0x40 0x18 0xC8 0x40 0x18
SPI FLASH start_up_mode is 3 Bytes
Spi(cs1):
Block:64KB
Chip:16MB
Name:"GD25Q128"
spi size: 16MB
chip num: 1
7 cmdlinepart partitions found on MTD device hi_sfc
Creating 7 MTD partitions on "hi_sfc":
0x000000000000-0x000000040000 : "boot"
0x000000040000-0x000000060000 : "env"
0x000000060000-0x000000080000 : "conf"
0x000000080000-0x000000380000 : "os"
0x000000380000-0x000000700000 : "rootfs"
0x000000700000-0x000000fe0000 : "home"
0x000000fe0000-0x000001000000 : "vd"
Fixed MDIO Bus: probed
himii: probed
usbcore: registered new interface driver rt2500usb
usbcore: registered new interface driver rt73usb
ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
hiusb-ehci hiusb-ehci.0: HIUSB EHCI
hiusb-ehci hiusb-ehci.0: new USB bus registered, assigned bus number 1
hiusb-ehci hiusb-ehci.0: irq 15, io mem 0x100b0000
hiusb-ehci hiusb-ehci.0: USB 0.0 started, EHCI 1.00
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 1 port detected
ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
hiusb-ohci hiusb-ohci.0: HIUSB OHCI
hiusb-ohci hiusb-ohci.0: new USB bus registered, assigned bus number 2
hiusb-ohci hiusb-ohci.0: irq 16, io mem 0x100a0000
hub 2-0:1.0: USB hub found
hub 2-0:1.0: 1 port detected
usbcore: registered new interface driver cdc_acm
cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
usbcore: registered new interface driver cdc_wdm
Initializing USB Mass Storage driver...
usbcore: registered new interface driver usb-storage
USB Mass Storage support registered.
usbcore: registered new interface driver ums-alauda
usbcore: registered new interface driver ums-datafab
usbcore: registered new interface driver ums-freecom
usbcore: registered new interface driver ums-isd200
usbcore: registered new interface driver ums-jumpshot
usbcore: registered new interface driver ums-sddr09
usbcore: registered new interface driver ums-sddr55
usbcore: registered new interface driver mdc800
mdc800: v0.7.5 (30/10/2000):USB Driver for Mustek MDC800 Digital Camera
mousedev: PS/2 mouse device common for all mice
usbcore: registered new interface driver usbhid
usbhid: USB HID core driver
TCP cubic registered
Initializing XFRM netlink socket
NET: Registered protocol family 10
NET: Registered protocol family 17
NET: Registered protocol family 15
lib80211: common routines for IEEE802.11 drivers
Registering the dns_resolver key type
registered taskstats version 1
drivers/rtc/hctosys.c: unable to open rtc device (rtc0)
sb 1-1: new high speed USB device number 2 using hiusb-ehci
VFS: Mounted root (jffs2 filesystem) on device 31:4.
Freeing init memory: 132K

            _ _ _ _ _ _ _ _ _ _ _ _
            \  _  _   _  _ _ ___
            / /__/ \ |_/
           / __   /  -  _ ___
          / /  / /  / /
  _ _ _ _/ /  /  \_/  \_ ______
___________\___\__________________

[RCS]: /etc/init.d/S00devs
[RCS]: /etc/init.d/S01udev
udevd (631): /proc/631/oom_adj is deprecated, please use /proc/631/oom_score_adj instead.
[RCS]: /etc/init.d/S80network
ADDRCONF(NETDEV_UP): eth0: link is not ready

 mtd2: conf
 mtd4: rootfs
 mtd5: home
 GetMtdblock mtd conf 2, rootfs 4, home 5 !
 read_boot_flag_and_load ok!
mount: mounting /dev/hd1 on /home/hd1 failed: No such file or directory
rm: can't remove '/home/mmap_tmpfs/mmap.info': No such file or directory
mv: can't rename '/home/default.script': No such file or directory
cp: can't stat '/home/hd1/wpa_supplicant.conf1': No such file or directory
cp: can't stat '/etc/wpa_supplicant.conf': No such file or directory
mv: can't rename '/home/hd1/wpa_supplicant.conf': No such file or directory
rm: can't remove '/home/hd1/crypt.bin': No such file or directory
tmpfs on /tmp type tmpfs (rw,relatime,size=32768k)
PHY: himii:01 - Link is Up - 10/Half
ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
mtd6
1+0 records in
1+0 records out
1024 bytes (1.0KB) copied, 0.000578 seconds, 1.7MB/s
get production info ok

[CPLD_PERIPH] cpld_init ok, [ ver=May 19 2015, 15:38:10 ]
mtprealloc7601Usta: module license 'unspecified' taints kernel.
Disabling lock debugging due to kernel taint
==>[0]:PreBuff:0xc1b20000, DmaAddr:0x81b20000
==>[1]:PreBuff:0xc1b30000, DmaAddr:0x81b30000
==>[2]:PreBuff:0xc1b40000, DmaAddr:0x81b40000
==>[3]:PreBuff:0xc1b50000, DmaAddr:0x81b50000
==>[4]:PreBuff:0xc1b60000, DmaAddr:0x81b60000
==>[5]:PreBuff:0xc19ed000, DmaAddr:0x819ed000
==>[6]:PreBuff:0xc19ea000, DmaAddr:0x819ea000
==>[7]:PreBuff:0xc1b10000, DmaAddr:0x81b10000
==>[8]:PreBuff:0xc1ae0000, DmaAddr:0x81ae0000
==>[9]:PreBuff:0xc1b70000, DmaAddr:0x81b70000
==>[10]:PreBuff:0xc1b78000, DmaAddr:0x81b78000
==>[11]:PreBuff:0xc1b80000, DmaAddr:0x81b80000
==>[12]:PreBuff:0xc1b88000, DmaAddr:0x81b88000
==>[13]:PreBuff:0xc1b90000, DmaAddr:0x81b90000
==>[14]:PreBuff:0xc1b98000, DmaAddr:0x81b98000
==>[15]:PreBuff:0xc1a09000, DmaAddr:0x81a09000
install prealloc ok
STA : @@@@@@ rtusb init rt2870 --->


=== pAd = c335d000, size = 1567864 ===

[0] pHTTXContext TransferBuffer=0xc1b20000,DMA=0x81b20000
[1] pHTTXContext TransferBuffer=0xc1b30000,DMA=0x81b30000
[2] pHTTXContext TransferBuffer=0xc1b40000,DMA=0x81b40000
[3] pHTTXContext TransferBuffer=0xc1b50000,DMA=0x81b50000
Alloc TX null/PsPoll
Alloc TX null/PsPoll
[0] pRxContext TransferBuffer=0xc1b10000,DMA=0x81b10000
[1] pRxContext TransferBuffer=0xc1ae0000,DMA=0x81ae0000
[2] pRxContext TransferBuffer=0xc1b70000,DMA=0x81b70000
[3] pRxContext TransferBuffer=0xc1b78000,DMA=0x81b78000
[4] pRxContext TransferBuffer=0xc1b80000,DMA=0x81b80000
[5] pRxContext TransferBuffer=0xc1b88000,DMA=0x81b88000
[6] pRxContext TransferBuffer=0xc1b90000,DMA=0x81b90000
[7] pRxContext TransferBuffer=0xc1b98000,DMA=0x81b98000
pCmdRspEventContext TransferBuffer=0xc1a09000,DMA=0x81a09000
<-- RTMPAllocTxRxRingMemory, Status=0
<-- RTMPAllocAdapterBlock, Status=0
RTMP_COM_IoctlHandle():pAd->BulkOutEpAddr=0x8
RTMP_COM_IoctlHandle():pAd->BulkOutEpAddr=0x4
RTMP_COM_IoctlHandle():pAd->BulkOutEpAddr=0x5
RTMP_COM_IoctlHandle():pAd->BulkOutEpAddr=0x6
RTMP_COM_IoctlHandle():pAd->BulkOutEpAddr=0x7
RTMP_COM_IoctlHandle():pAd->BulkOutEpAddr=0x9
==>WaitForAsicReady MAC_CSR0=0x76010500
==>WaitForAsicReady MAC_CSR0=0x76010500
NVM is EFUSE
Endpoint(8) is for In-band Command
Endpoint(4) is for WMM0 AC0
Endpoint(5) is for WMM0 AC1
Endpoint(6) is for WMM0 AC2
Endpoint(7) is for WMM0 AC3
Endpoint(9) is for WMM1 AC0
Endpoint(84) is for Data-In
Endpoint(85) is for Command Rsp
usbcore: registered new interface driver rt2870
================> UP : RTMP_SEM_EVENT_WAIT(STA)
1. LDO_CTR0(6c) = a64799, PMU_OCLEVEL c
2. LDO_CTR0(6c) = a6478d, PMU_OCLEVEL 6
==>WaitForAsicReady MAC_CSR0=0x76010500
FW Version:0.1.00 Build:7640
Build Time:201308201452____
ILM Length = 46472(bytes)
DLM Length = 0(bytes)
Loading FW....
#
RTMP_TimerListAdd: add timer obj c34824f4!
RTMP_TimerListAdd: add timer obj c3482524!
RTMP_TimerListAdd: add timer obj c3482554!
RTMP_TimerListAdd: add timer obj c34824c4!
RTMP_TimerListAdd: add timer obj c3482434!
RTMP_TimerListAdd: add timer obj c3482464!
RTMP_TimerListAdd: add timer obj c3416e6c!
RTMP_TimerListAdd: add timer obj c3403768!
RTMP_TimerListAdd: add timer obj c340379c!
RTMP_TimerListAdd: add timer obj c3416f0c!
RTMP_TimerListAdd: add timer obj c3406118!
RTMP_TimerListAdd: add timer obj c3405958!
RTMP_TimerListAdd: add timer obj c34060e4!
RTMP_TimerListAdd: add timer obj c3406434!
RTMP_TimerListAdd: add timer obj c340614c!
RTMP_TimerListAdd: add timer obj c3406180!
RTMP_TimerListAdd: add timer obj c34061b4!
RTMP_TimerListAdd: add timer obj c336132c!
RTMP_TimerListAdd: add timer obj c3360b6c!
RTMP_TimerListAdd: add timer obj c33612f8!
RTMP_TimerListAdd: add timer obj c3361648!
RTMP_TimerListAdd: add timer obj c336157c!
RTMP_TimerListAdd: add timer obj c3396564!
RTMP_TimerListAdd: add timer obj c3395da4!
RTMP_TimerListAdd: add timer obj c3396530!
RTMP_TimerListAdd: add timer obj c3396880!
RTMP_TimerListAdd: add timer obj c3396598!
RTMP_TimerListAdd: add timer obj c33965cc!
RTMP_TimerListAdd: add timer obj c3396600!
RTMP_TimerListAdd: add timer obj c3416e0c!
RTMP_TimerListAdd: add timer obj c3416edc!
RTMP_TimerListAdd: add timer obj c34d9924!
RTMP_TimerListAdd: add timer obj c34d9954!
RTMP_TimerListAdd: add timer obj c34d9984!
RTMP_TimerListAdd: add timer obj c34d99b4!
RTMP_TimerListAdd: add timer obj c34d99e4!
RTMP_TimerListAdd: add timer obj c34d9a18!
RTMP_TimerListAdd: add timer obj c3482494!
RTMP_TimerListAdd: add timer obj c3402784!
RTMP_TimerListAdd: add timer obj c3402754!
RTMP_TimerListAdd: add timer obj c3402724!
RTMP_TimerListAdd: add timer obj c3416e3c!
P2pGroupTabInit .
P2pScanChannelDefault <=== count = 3, Channels are 1, 6,11 separately
P2pCfgInit::
==>WaitForAsicReady MAC_CSR0=0x76010500
***link down status changed***.
PHY: himii:01 - Link is Down
cfg_mode=9
cfg_mode=9
wmode_band_equal(): Band Equal!
Key1Str is Invalid key length(0) or Type(0)
Key2Str is Invalid key length(0) or Type(0)
Key3Str is Invalid key length(0) or Type(0)
Key4Str is Invalid key length(0) or Type(0)
1. Phy Mode = 14
2. Phy Mode = 14
NVM is Efuse and its size =1d[1e0-1fc]
ERROR!!! MT7601 E2PROM: WRONG VERSION 0xc, should be 9
3. Phy Mode = 14
AntCfgInit: RxAntDiversityCfg 6
AntCfgInit: primary/secondary ant 0/1
AntCfgInit: RxAntDiv 0/0
---> InitFrequencyCalibration
InitFrequencyCalibrationMode:Unknow mode = 3
InitFrequencyCalibration: frequency offset in the EEPROM = 103(0x67)
<--- InitFrequencyCalibration
RTMPSetPhyMode: channel is out of range, use first channel=1
MCS Set = ff 00 00 00 01
<==== STA : rt28xx_init, Status=0
0x1300 = 00064300
RTMPDrvOpen(1):Check if PDMA is idle!
RTMPDrvOpen(2):Check if PDMA is idle!
<================ UP : RTMP_SEM_EVENT_UP(STA)
fs.mqueue.msg_max = 256
STORE CID =
not need update staus
rm: can't remove '/home/do_format': No such file or directory
Hisilicon Media Memory Zone Manager
Hisilicon UMAP device driver interface: v3.00
pa:82800000, va:c3540000
load sys.ko ...OK!
acodec inited!
insert audio
load viu.ko ...OK!
ISP Mod init!
load vpss.ko ....OK!
load venc.ko ...OK!
load group.ko ...OK!
load chnl.ko ...OK!
load h264e.ko ...OK!
load jpege.ko ...OK!
load rc.ko ...OK!
load region.ko ....OK!
load vda.ko ....OK!
hi_i2c init is ok!
Kernel: ssp initial ok!
==== Your input Sensor type is ov9712 ====
net.ipv4.tcp_mem = 3072    4096    2000000
net.core.wmem_max = 2000000
net.ipv4.tcp_keepalive_time = 300
net.ipv4.tcp_keepalive_intvl = 6
net.ipv4.tcp_keepalive_probes = 3
insmod: can't insert '/home/as-iosched.ko': No such file or directory
./init.sh: line 76: can't create /sys/block/mmcblk0/queue/scheduler: nonexistent directory
./init.sh: line 77: can't create /sys/block/mmcblk0/queue/read_ahead_kb: nonexistent directory
umount: can't umount /home/hd1: Invalid argument
umount: can't umount /home/hd2: Invalid argument
mount: mounting /dev/hd1 on /home/hd1 failed: No such file or directory
mkdir: can't create directory '/home/hd1/record': File exists
mkdir: can't create directory '/home/hd1/record_sub': File exists
mount: mounting /dev/hd2 on /home/hd2 failed: No such file or directory
mkdir: can't create directory '/home/hd2/record_sub': File exists
*** Board tools : ver0.0.1_20120501  ***
[debug]: {source/utils/cmdshell.c:166}cmdstr:himm
0x20050074: 0x4F4F2424 --> 0x06802424
[END]
do waiting dump

[c][PERIPH] peripheral start ============================ [May 19 2015] [15:38:06] [00000002]==============================
[c][EXNET] start

[c][EXNET]  exnet_get_sharemem: exnet_get_sharemem GetShareMem write open file error

[c][EXNET]  call exnet_get_sharemem return error!!!
 GetShareMem write open file error
open share mem fail
peripheral call set_ircut 1
umount: can't umount /home/mmap_tmpfs: Invalid argument
tmpfs on /home/mmap_tmpfs type tmpfs (rw,relatime,size=512k)
peripheral call set_ircut 2
umount: can't umount /home/tmpfs: Invalid argument
tmpfs on /home/tmpfs type tmpfs (rw,relatime,size=16384k)
umount: can't umount /home/jrview: Invalid argument
tmpfs on /home/jrview type tmpfs (rw,relatime,size=16384k)

[c][DISPATCH] common mmap address=0x40137000, size=12 KB =12792 Bytes
_____ mq create success!! ______font:/home/iso8859-1-16x32.bin
filesize=16384
font:/home/iso8859-1-8x16.bin
filesize=4096
font:/home/iso8859-1-4x8.bin
filesize=2048
font:/home/gb2312_16x16.bin
filesize=0
font:/home/gb2312_32x32.bin
filesize=0
font:/home/gb2312_8x8.bin
filesize=0
_____ g_sched_shm_addr create success!! ______mv: can't rename '/etc/*.zk': No such file or directory

[d][EXNET]  g_mmap_addr->encodeLogLevel zero error, wait mmap ok!do waiting dump
g_ptr_mmap->encodeLogLevel=0

[d][EXNET]  g_mmap_addr->encodeLogLevel zero error, wait mmap ok!mtd6
1+0 records in
1+0 records out
1024 bytes (1.0KB) copied, 0.000609 seconds, 1.6MB/s
get production info ok

[d][DISPATCH] read /tmp/productionread.inf, 1 ok len 1024 !trans_info ret(0) uid=(ADC6AD9C8KSVSU82111A)
got uid(ADC6AD9C8KSVSU82111A)
trans_info ret(0) sn=(2ed7f713e04f54145d23a8b34301892a)
got sn(2ed7f713e04f54145d23a8b34301892a)
trans_info ret(0) did=(21CN8GVY8PH78F150605)
got device(21CN8GVY8PH78F150605)
trans_info ret(0) info0=(5Mlwg5fmPvkRQkIe)
got uidpw(5Mlwg5fmPvkRQkIe)
trans_info ret(0) info1=(n1LwThqwXtdX7KQy)
got loginname(n1LwThqwXtdX7KQy)
trans_info ret(0) info2=(3357340)
got password(3357340)

[d][EXNET]  exnet_get_sharemem encodeLogLevel=0x3001 ok!
[d][DISPATCH] DISPATCHOtherHandle: DISPATCH_START_OK! _____ g_sched_shm_addr ready!! ______*** Board tools : ver0.0.1_20120501  ***
[debug]: {source/utils/cmdshell.c:166}cmdstr:himm
0x20030030: 0x00000001 --> 0x00000001
[END]
rmm_init_mpp 5910...peripheral call set_ircut 1
AEC_Init error framelen(320)
[Func]:MPI_AI_AecInit [Line]:375 [Info]:aec open fail.
peripheral call set_ircut 2

[e][PERIPH] periph_init_sharmem, [ update hardwareVer:00000002 ]

[e][PERIPH] periph_init_sharmem ok.

[e][PERIPH] rtc_open_hisi3518 /dev/hi_rtc ok.
[e][PERIPH] rtc_get_hisi3518 [ 1970-01-01,00:00:19 ]
in set_system_time

[e][PERIPH]  set_system_time:  date -s 197001010000.19
 Thu Jan  1 00:00:19 UTC 1970
do waiting dump
/ipc_dispatch mq_open ok, id is 4
killall: wpa_supplicant: no process killed

[13][DISPATCH] DISPATCH_IPCAM_CHIP set to 2
[13][DISPATCH] 0 decode 7 set current vi type 7 frame 25
[13][DISPATCH] PERIPH_NOTIFY_HARDWARE_VER: 0x02! rmm_msg_handle got cmd(1)
rmm_msg_handle got cmd(5157)
get_data_frame width =352  height =192
dhcpcd[1011]: dhcpcd not running
n =0
get_data_frame width =352  height =192
killall: dhcpcd: no process killed
rm: can't remove '/home/hd1/wpa_supplicant.conf': No such file or directory
n =0
get_data_frame width =352  height =192
n =0
get_data_frame width =352  height =192
n =0
get_data_frame width =352  height =192
n =0
get_data_frame width =352  height =192
n =0
get_data_frame width =352  height =192
n =0
get_data_frame width =352  height =192
n =0
do waiting dump
get_data_frame width =352  height =192
n =0
get_data_frame width =352  height =192
Xiaomi/XIAOYI Smart Camera is Linux Camera Box. | 0 件のコメント | アカウント登録
サイト管理者はコメントに関する責任を負いません。
