ELECOM WRH-300CRをOpenWrt化する

ELECOM WRH-300CRをOpenWrt化する。
搭載SoCはMT7620N、RAM 64MB、SPI Flash 16MB。
USBが付いてるのがいい感じかな。

OpenWrt対応は、r49211からになります。(snapshot buildも始まってます。)
https://dev.openwrt.org/changeset/49211

naobsdさんのサイトに情報あるから、あまり書く事もないのですが、ほんの少しだけパッチ作成に関わったので実機入手してみました。


既にぱかっとなぁ。してますが開封記しておきます。

USBケーブルが付属しています。
個人的にUSBが内臓してるか、電源内臓が好みです。(2個になると持ち運びが面倒なので)
本体とケーブルが別だと、ケーブルが傷んだらケーブルだけ交換できる利点はあるんだけど。

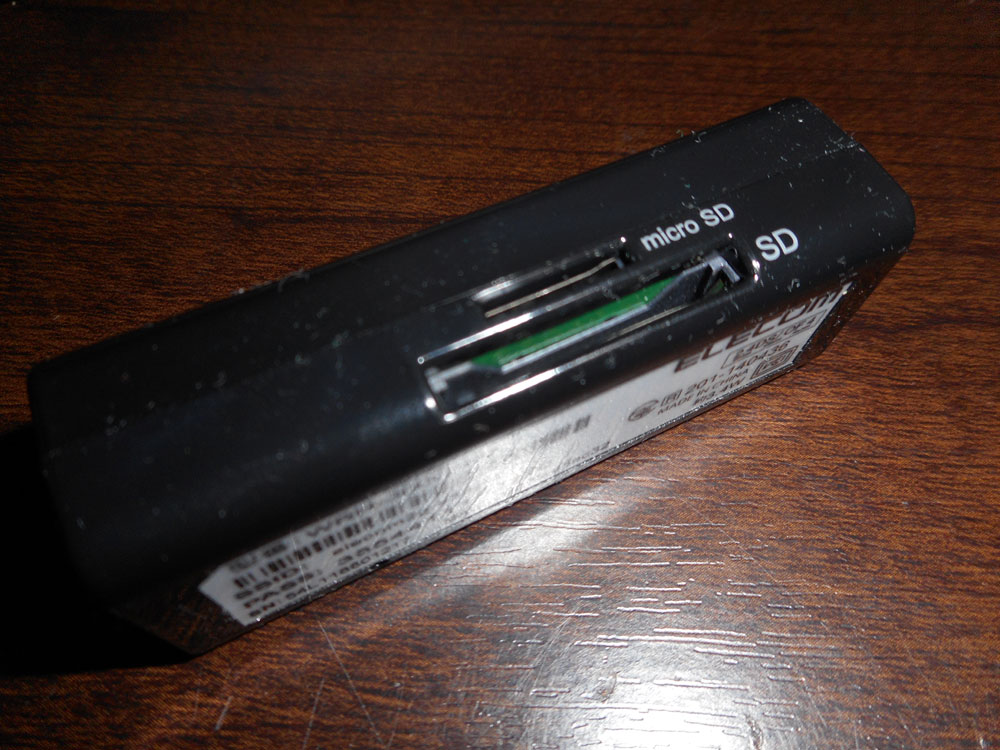

microSDとSDの両方が刺さる。
製品としてこうなってるけど、OpenWrtで使うオモチャとしてはmicroSDだけでいいなぁ。と個人的。。。(製品としてそのまま使う気がまったくない発言)


爪は凄く弱くて柔らかい。

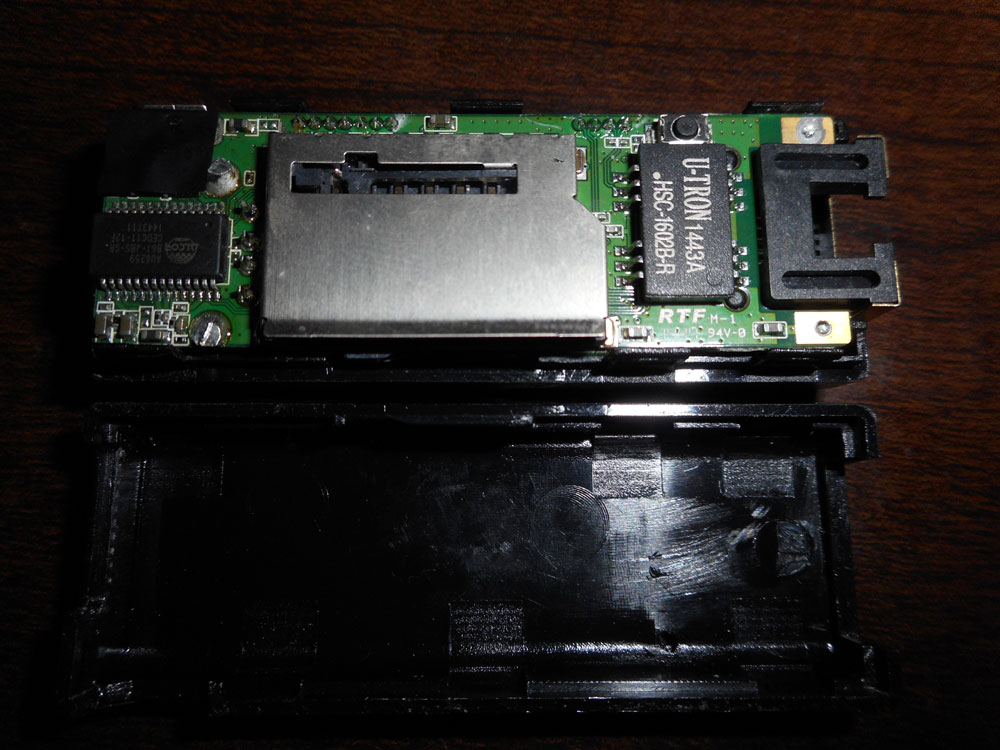

ぱかっと簡単に開いた。
開くのに困る事は無さそう。カッターでウニウニすれば簡単に開く。


SDスロットでかいな。


USB、有線Ethernetが1個づつ。


基板は2枚構成。
SDが無ければ1枚構成に出来るんじゃないかなぁと思う。


このピッチのコネクタでの2枚構成の場合、バラすの難しいんだよね。
剥がす時にバターンが持たない事がある。


microSDとSDスロットにかなりのスペースを取られている。
また、MT7620NからUSBを複数取る必要が出てしまっているので、USBハブ(AU6259)を間に付ける形となり基板サイズがまた大きくなってしまっている。
搭載SoCがMT7620Nではなく、MT7620Aであれば、SD-XCが生えているのでUSBハブは不要となった筈ではあるが。
MT7620Nを採用しているのは、チップ単価、チップサイズ、発熱量を意識したのだろうか。


みんなが大好きなシリアルはスルーホールで出ている。
写真右下の4ピンがシリアルにあたる。
基板外側から、RX、TX、GND、VCCになります。(naobsdさんのサイトにある写真が解りやすい。)


こんな感じでシリアル使ってます。


ピッチが狭いので、サンハヤトのテスト用ジャンパとかは入りません。
ストロベリーリナックスのテストクリップが利用できます。(お値段高いのが難点ですが。送料もかかるし。アキバで売って欲しいな。)


一応最後に純正ファームのログを張付。
